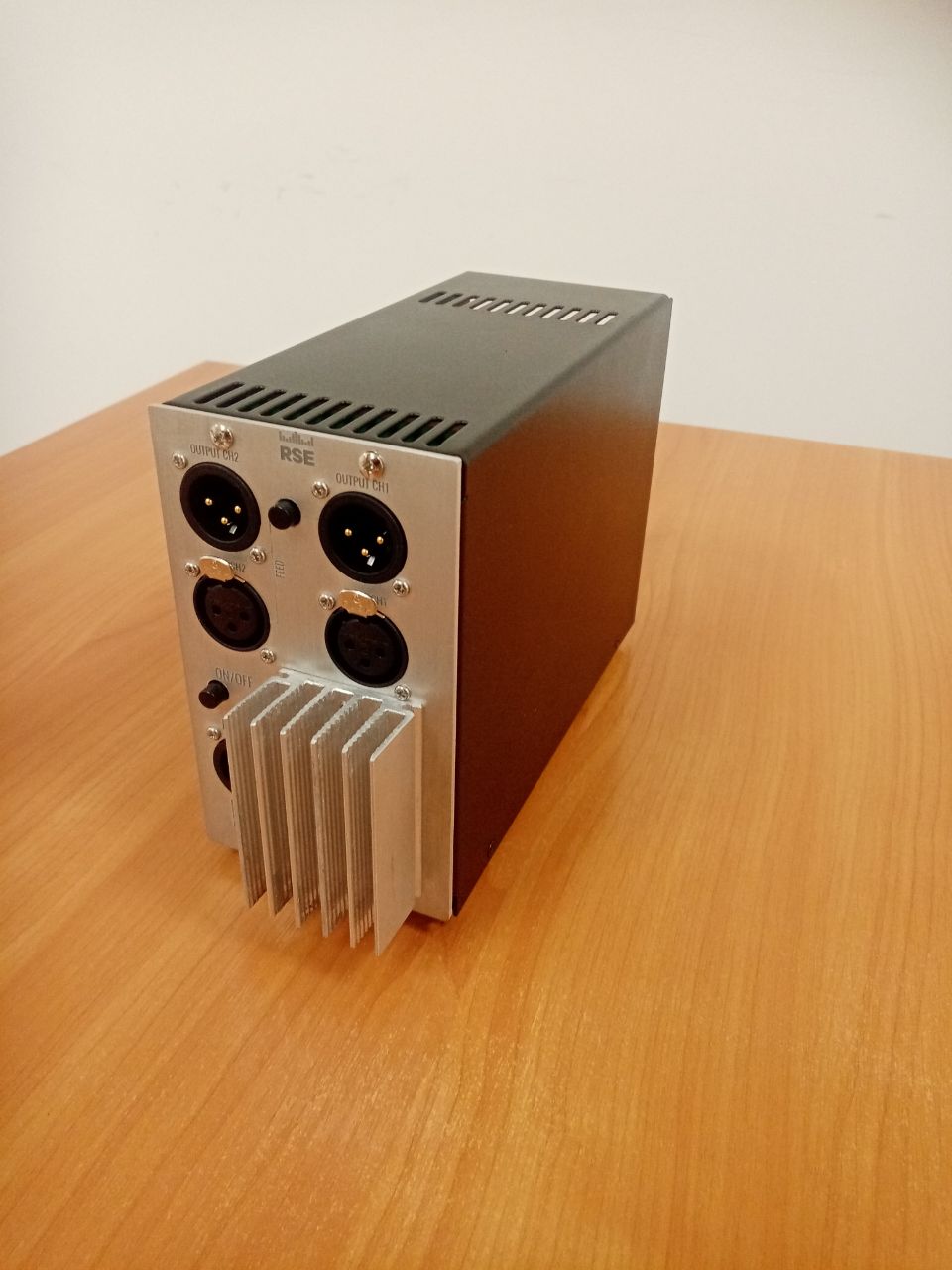

500series rack for 2 x 500 series modules

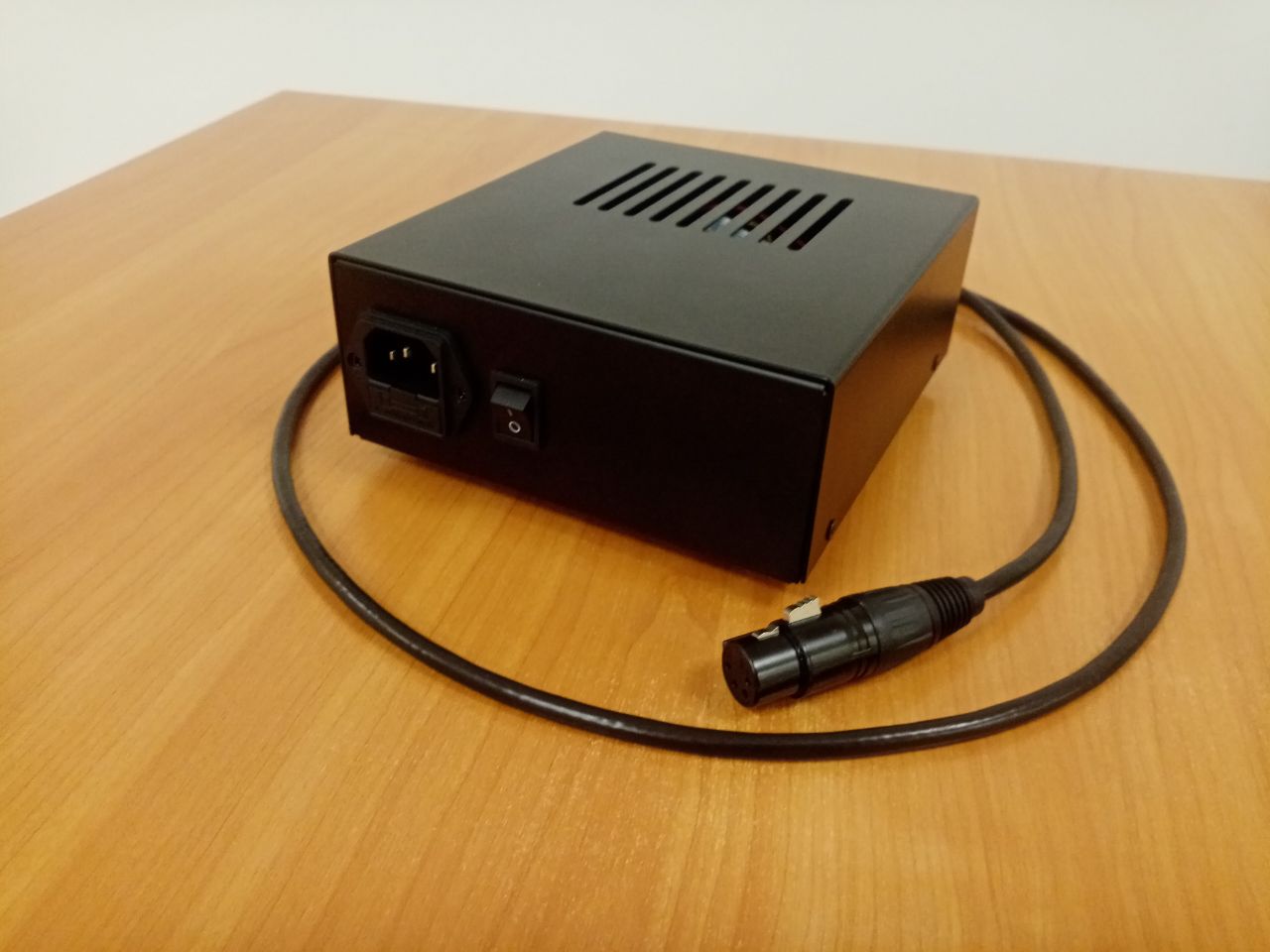

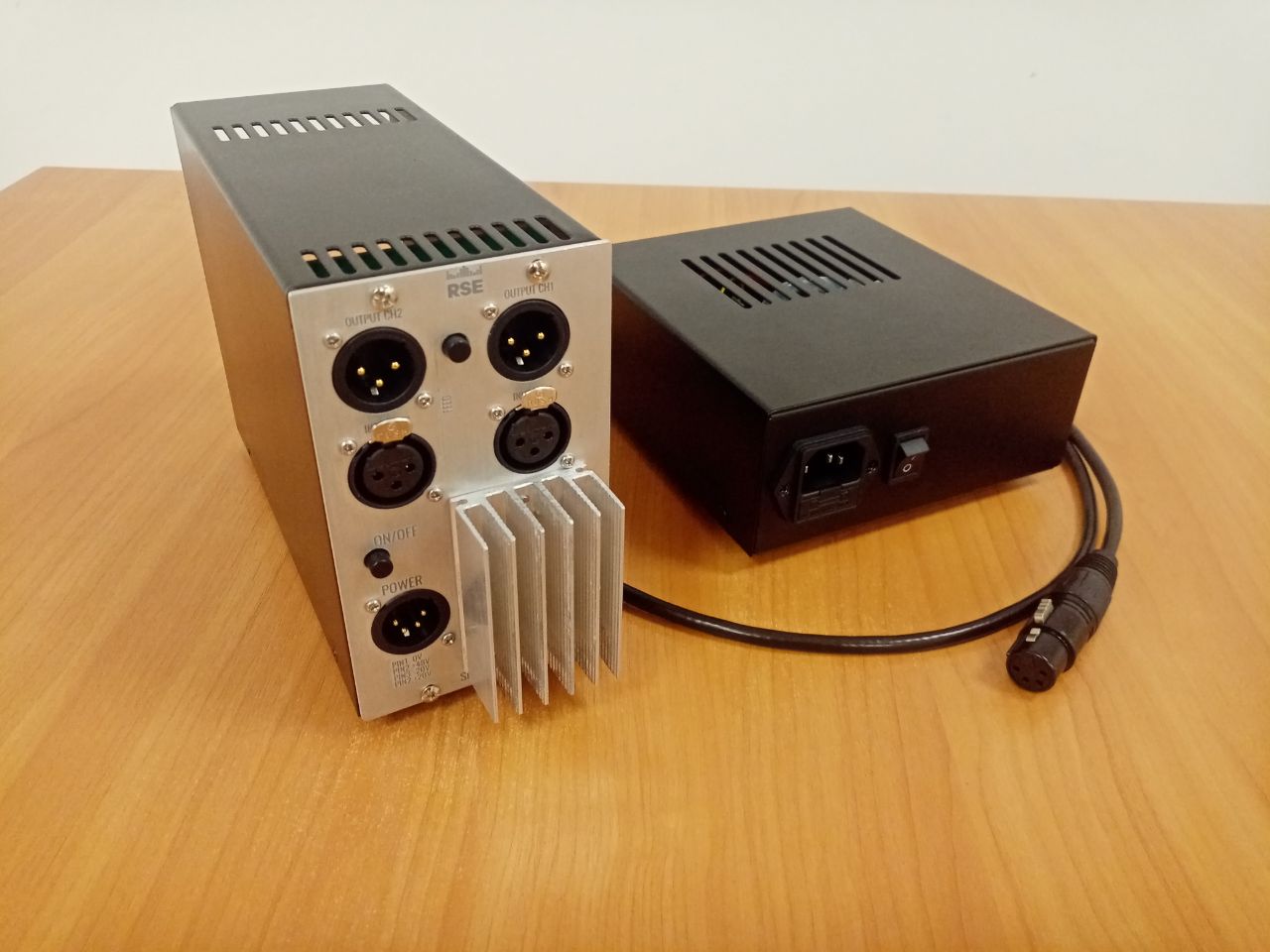

The ultimate gear solution for the 500 series module mounting. We believe such a piece of gear can find its place in many studios thanks to a reliable and powerful power supply with a 1Ampere load. To reduce the interference, it's decided to place the toroidal transformer and the rectifiers in an external power supply unit. The mair rack has separate linear stabilizers for positive and negative 16V rails which are placed on the big heatsink on the rear side.

The rack has developed inter-modular communication. The user is able to feed the first channel's output with the second's input using the button on the rear side of the rack.

Technical Specifications

• Power voltage: 200-250VAC(50Hz)/100-125VAC(60Hz)
• Output voltage +/- 16VDC: 1A
• Output voltage +48VDC: 25mA
• Internal connections: 500 series standart(see the picture of pinout)
• Output connections: 1 XLR in & 1 XLR per channel (Neutrik)
• Stereo link: Yes (pin 6 module 1 & pin 6 module 2 can be connected using the jumper)
• Serial modules link: Yes
• Ground/Lift: Yes, general on the PSU
• USB modules control: No
• Built in DAC: No
• Built in ADC: No
• Built in mixer: No
