500series rack for 2 x 500 series modules

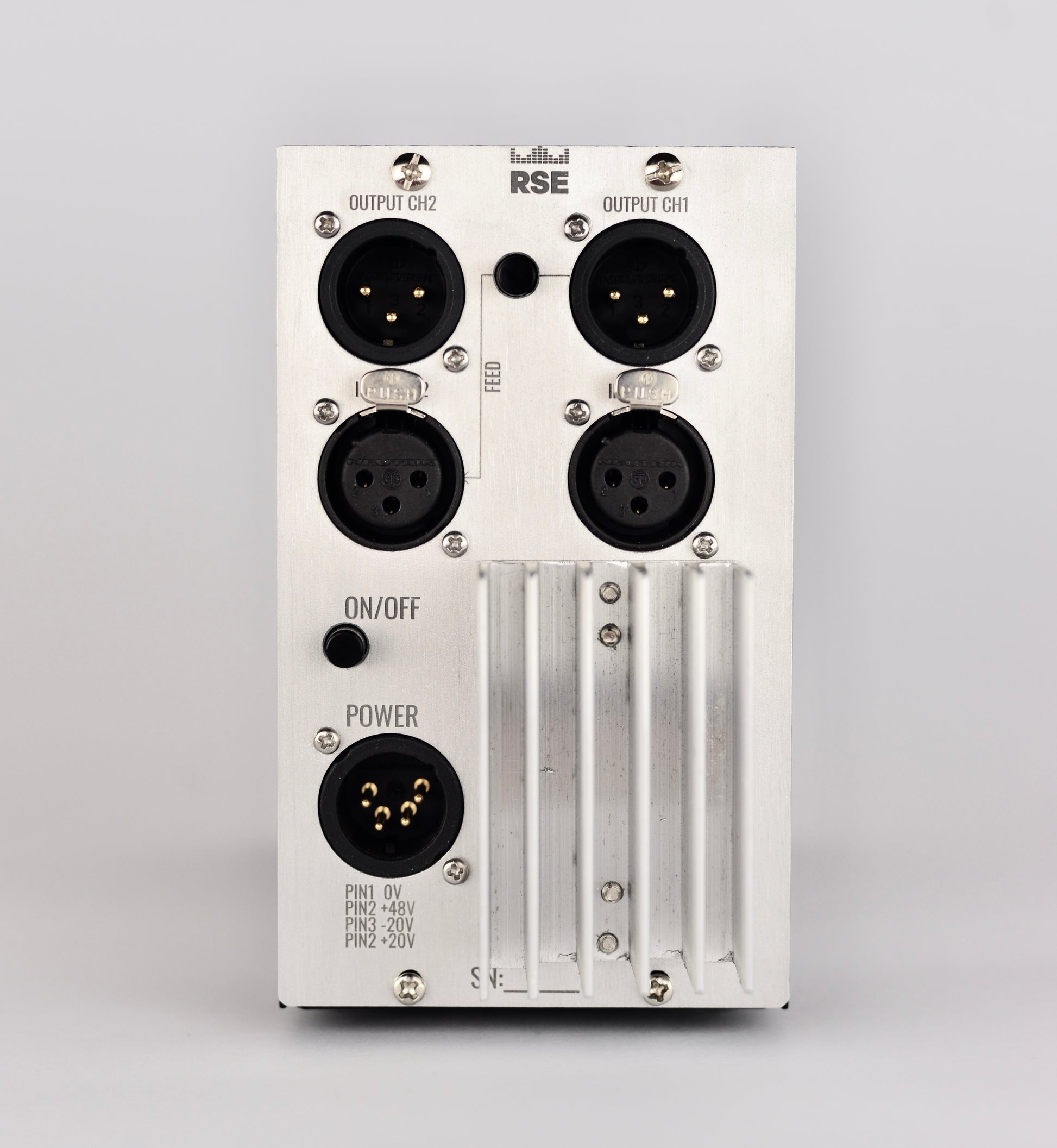

The ultimate gear solution for the 500 series module mounting. We believe such a piece of gear can find its place in many studios thanks to a reliable and powerful power supply with a 1Ampere load. To reduce the interference, it's decided to place the toroidal transformer and the rectifiers in an external power supply unit. In addition, each channel has separate linear stabilizers which are placed on the big heatsink on the rear side of the rack.

The rack has developed inter-modular communication. The user is able to mute each channel and link the first channel's output with the second's input.

Technical Specifications

• Power voltage: 200-250VAC(50Hz)/100-125VAC(60Hz)
• Output voltage +/- 16VDC: 1A
• Output voltage +48VDC: 25mA
• Internal connections: 500 series standart(see the picture of pinout)
• Output connections: 1 XLR in & 1 XLR per channel (Neutrik)
• Stereo link: No
• Serial modules link: Yes
• Ground/Lift: Yes, general on the PSU
• USB modules control: No
• Built in DAC: No
• Built in ADC: No
• Built in mixer: No
